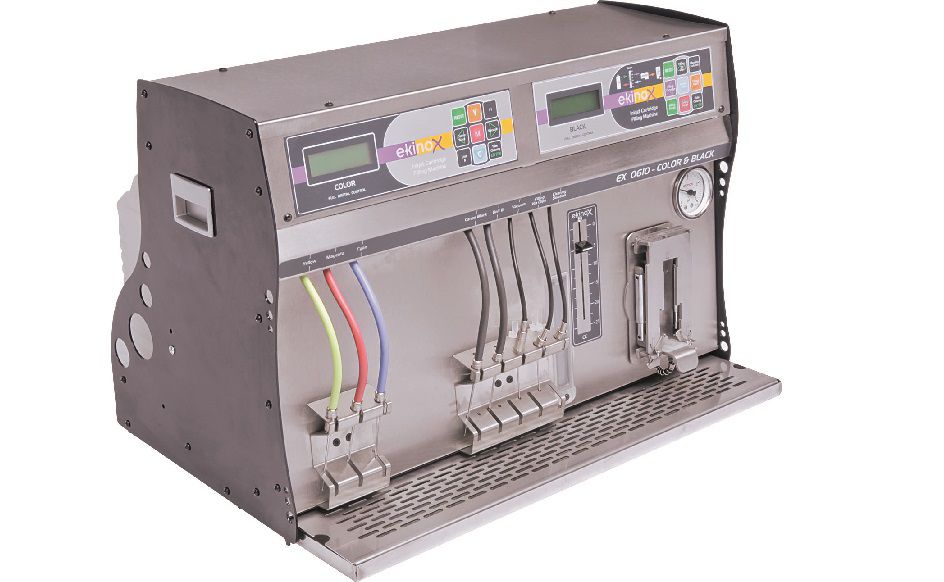

EX-CR 0610 Cartridge Filling Machine1600€
Technical Faetures EX CR 0610

Most practically and healty filling with specially designed needles
◊ Functional chromium apparatus

  • Color & Black Filling
  • Special design sensored needles
  • Functional Chrome apparatus (Black Filling & Vacuum)
  • Vacuum & Washing
  • LCD screen & to precise tracing with Pressure reader
  • Chrome body
Technical Faetures
  • Vacuum cartridges with hand vacuum.
  • Vacuum from nozzle with any apparatus
    1. Vacuum single color on color cartridges.
    2. Vacuum with needle from top of the cartridge
    3. Vacuum from nozzle with any apparatus
  • Black cartridge which is can not tied to chromiumapparatus can be filled from nozzle with any apparatus

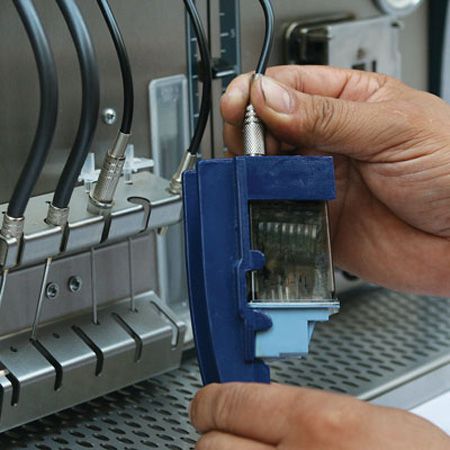

  • Fill Canon black cartridge with own ink and special sensitive needle

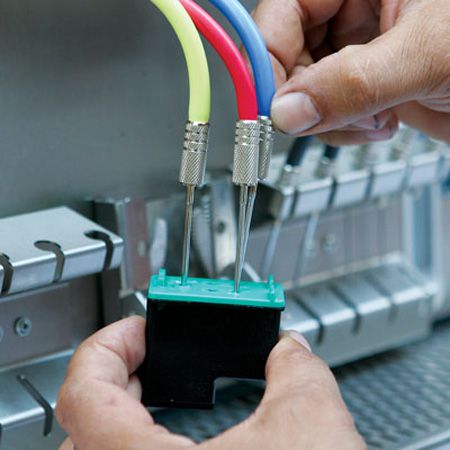

  • Ink level of all (black and color) cartridges with felt, determined with special sensitive needles and cartridges filled as needed and equal level.
  • Filling cartridges slowly for satisfaction of felt by dripping.
  • Color mixed section of cartridge can be washed.
  • With two keys, ink in the channels can be emptied and ink tank can be changed easily for different model and mark cartridges.

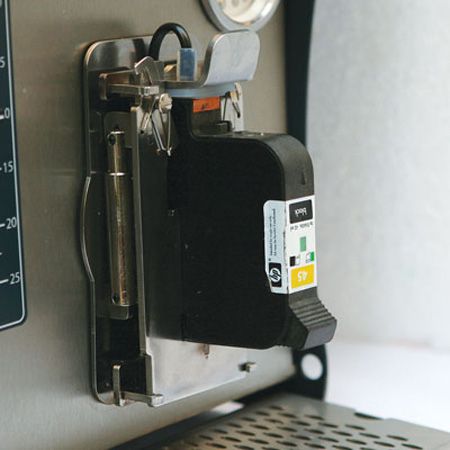

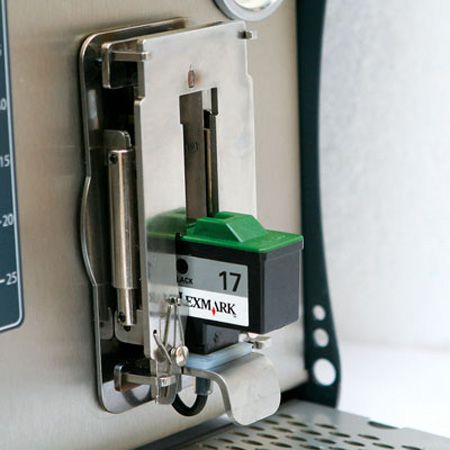

  • Cartridges that filled with chromium apparatus can be filled perfectly thanks to volume adjustment bar which is first on the world.
  • Many black cartridge models can be filled from nozzle thanks to special and functional chromium apparatus. Clogged cartridges can be seen thanks to pressure gauge.
  • For clogged cartridges speed reduced and filling repeated thanks to automatic speed controlled pumps while filling with chromium apparatus.
  • Black cartridges with felt, which are can not be filled with apparatus, are can be filled with special sensitive needle.
  • All settings can be adjusted with easy to use and clear menu
  • Easy to use keypad and operation following on and 2x16 LCD.
  • Very easy filling with special sensitive needles, volume adjustment bar and chromium apparatus.
  • Warning message on the screen when black ink finished in the tanks.
  • Warning message for clogged cartridges filled from nozzle.
  • Chromium body, digital counter, follow operation with sound (buzzer), English and Turkish language selection, design for no need to extra device, low energy consumption, microcontroller based control.
  • Ink tanks can be enlarged and changed easily.
  • Design for easy to maintenance.
  • Power Supply : 220V 50Hz, (110V or 12V optional)
  • Dimensions : 56x35x39(h)
  • Weight : 17,5 Kg +/- %6
