vacuum and wash

Cartridge Filling Machines EX-CR 0812EX-CR 0812
EX-CR 0812
EX-CR 0812
EX-CR 0812
1700 €

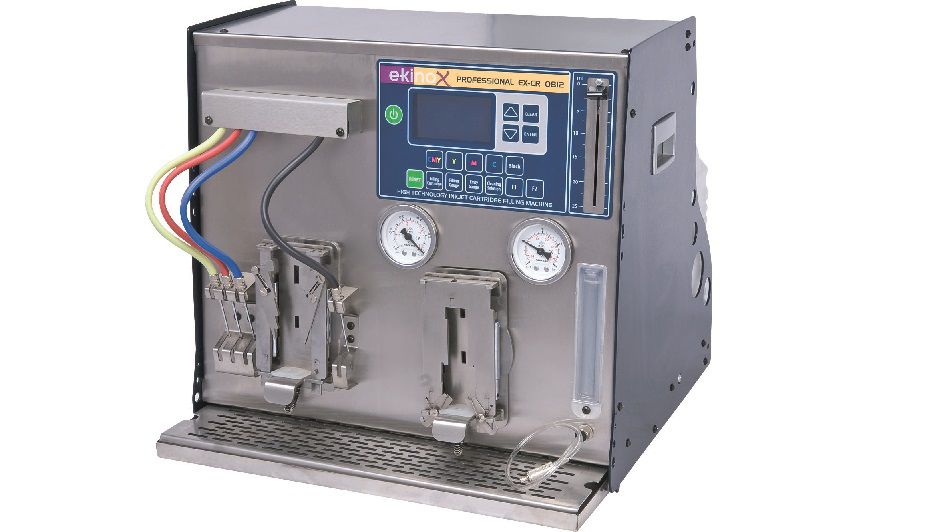

EX-CR 0812 Cartridge Filling Machines

Most practically and healty filling with specially designed needles
Functional chromium apparatus

  • Color & Black Filling
  • Special design sensored needles
  • Vacuum & Washing
  • Functional Chrome apparatus Black Filling
  • Functional Chrome apparatus (Black Filling & Vacuum)
  • LCD screen & to precise tracing with Pressure reader
  • Chrome body
  • Full digital fuctions


EX - CR  0812 Technical Faetures

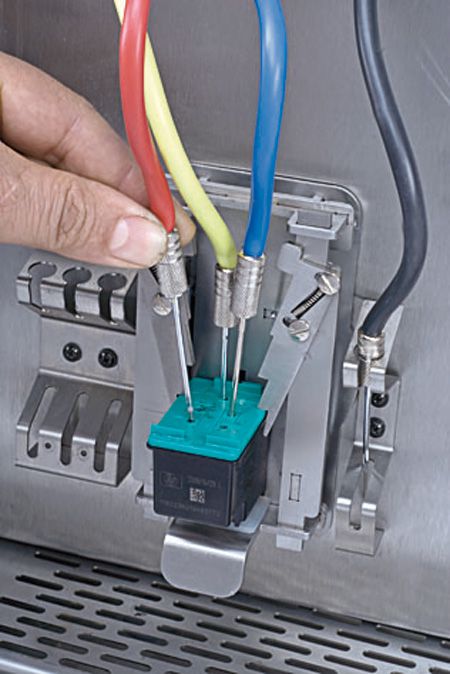

  • Ink level of all (black and color) cartridges with felt, determined with special sensitive needles and cartridges filled as needed and equal level.
  • Filling cartridges slowly for satisfaction of felt by dripping.
  • Most type of cartridges can be vacuumed (emptied).
  • Color mixed section of cartridge can be washed.
  • With two keys, ink in the channels can be emptied and ink tank can be changed easily for different model and mark cartridges.

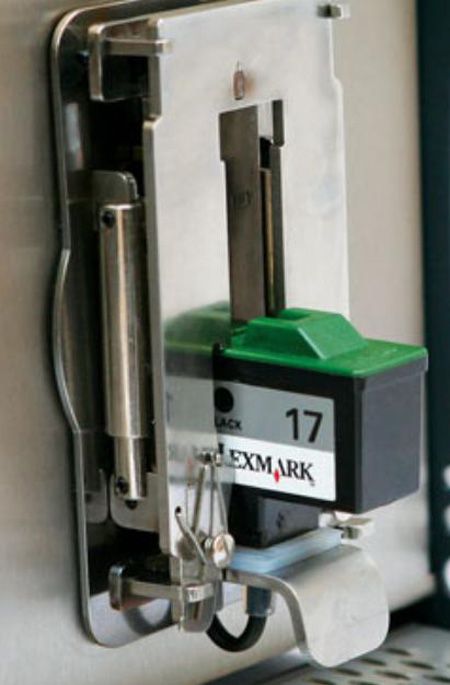

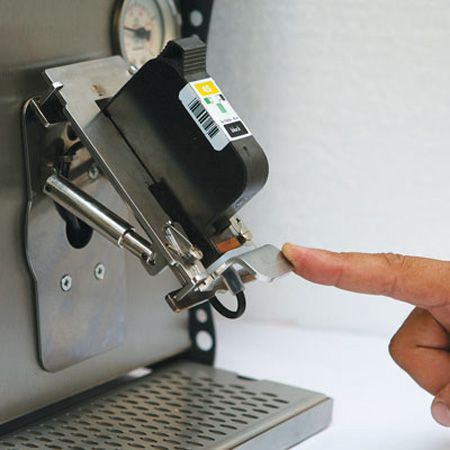

  • Cartridges that filled with chromium apparatus can be filled perfectly thanks to volume adjustment bar which is first on the world.
  • Many black cartridge models can be filled from nozzle thanks to special and functional chromium apparatus.Clogged cartridges can be seen thanks to pressure gauge.
  • For clogged cartridges speed reduced and filling repeated thanks to automatic speed controlled pumps while filling with chromium apparatus.

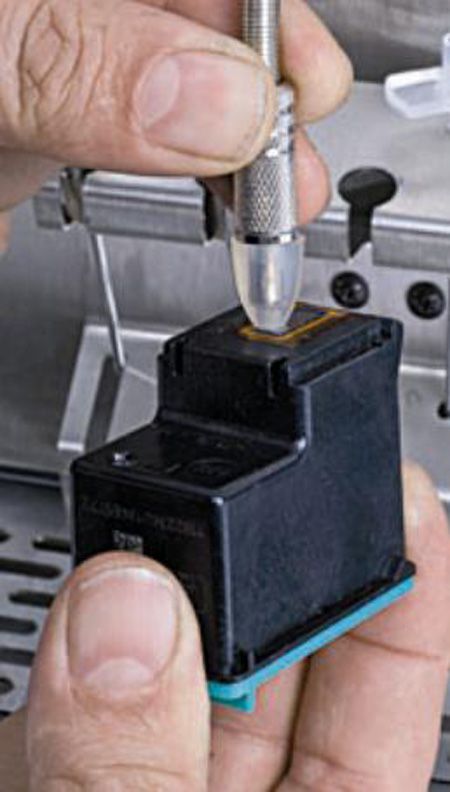

  • Black cartridges with felt, which are can not be filled with apparatus, are can be filled with special sensitive needle.All settings can be adjusted with easy to use and clear menu
  • Easy to use keypad and operation following on the Graphic LCD.Very easy filling with special sensitive needles, volume adjustment bar and chromium apparatus.
  • Warning message on the screen when ink finished in the tanks.
  • Warning message for clogged cartridges filled from nozzle.
  • Chromium body, digital counter, follow operation with sound (buzzer),English and Turkish language selection, design for no need to extra device, low energy consumption, microcontroller based control.
  • Ink tanks can be enlarged and changed easily.
  • Design for easy to maintenance.
  • Power Supply : 220V 50Hz, (110V or 12V optional)
  • Dimensions : 40x35x39(h)
  • Weight : 14Kg +/- %6

Page Summary: Cartridge filling machine ex-cr 0812

Abstract: EX-CR 0812 CARTRIDGE FILLING MACHINE WITH COLOR AND BLCAK FILLING VACUUMING AND WASHING
