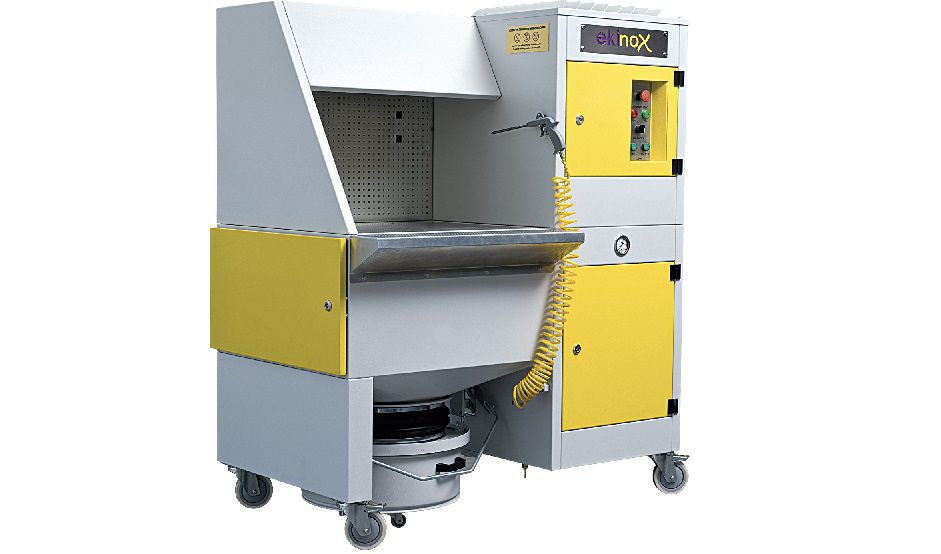

EX- TN 101 Laser Toner Cleaning Machine
%100 healthy...
◊ Don't inhale toxic toner dust while refilling!
◊ Fee toner cleaning machine

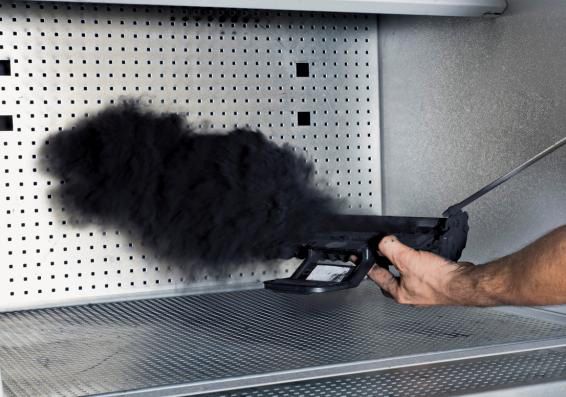

- With a very strong vacuum effect,toner dust particulates are sucked creating a better and cleaner environment
- Long-life filters (15.000hours)!Based on continuous 6 hours daily usage,the filter will last aproximately 8 years. This corresponds to around 120.000 toner filling operation

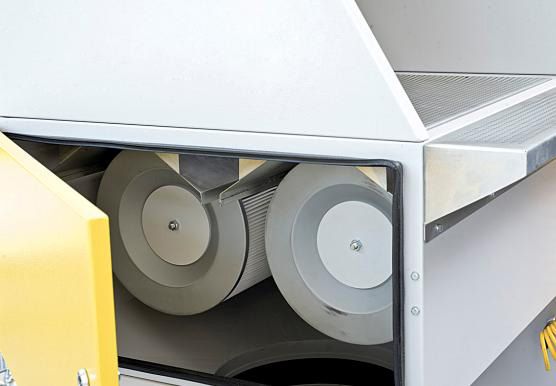

- The filters are cleanable cartridge (removable)types which can filter 0,2 micron particulates(as small as cigarette smoke particles)It filters to the DIN EN 60335 standard for Class M specks
- The monometer on the main control panel shows the condition of the filters.They can be easily cleaned with pressurized air
- The control panel and body is %100 metal.Electrical insulation conforms to CE standards
- The fully isolated body for noise reduction at
- Working base is designed for comfortable work
- The pressure air pump is also usable with other suitable hand tools

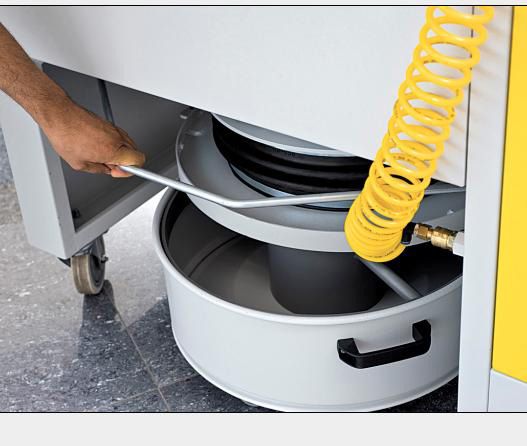

- Waste toner dust is collected in the compartment positioned under the machine for easy access and emptying
- The machine can be easily moved on its swiveling wheels
| EX - TN 101 Technical Faetures |
- Usage areas:During cleaning and filling the toner dust is very dangerous,by vacuuming the toner dust, the filters prevents toner dustentering the atmosphere for clean work environment.
- Filter:2 Cartridge filters(VN350).It filters with DIN EN 60335 standard at Class M. The dust filters are cartridge type cleanable.The filters will hold small particulate up to 0,2 microns at %99.98 efficiency. The manometer will give warning when the filters are dirty. When the filters are dirty, from the main body controll buttons will provide jet pulse action for cleaning.
- Filter Life:15.000 hours/Cleanable filters-jut pulse system.
- Control Panel:Completely enclosed to CE standards full protection from electrical shocks.
- Sound Level:>70 dB(A)
- Pressured air:To clean the toner cartridge and filter ,air pump is needed.
- Dust bucked capacity:15kg.(waste toner dust) When the machine filters ,waste toner dust will be collected in the dust bin for easy carriage and emptying.for easy carriage and emptying.
- Engine:1,5KW/220 V/50Hz. mono phase
- Vacuum flow rate:2000 m3/h
- Metal body:Electrostatic paint
- Working space :Height 70cm/Depth 92cm Width:82cm
- Weight:218 kg.( without packaging)
- Machine size: Width 78cm + 14cm (detachable base) / Length 143cm/ Height 165cm
|
