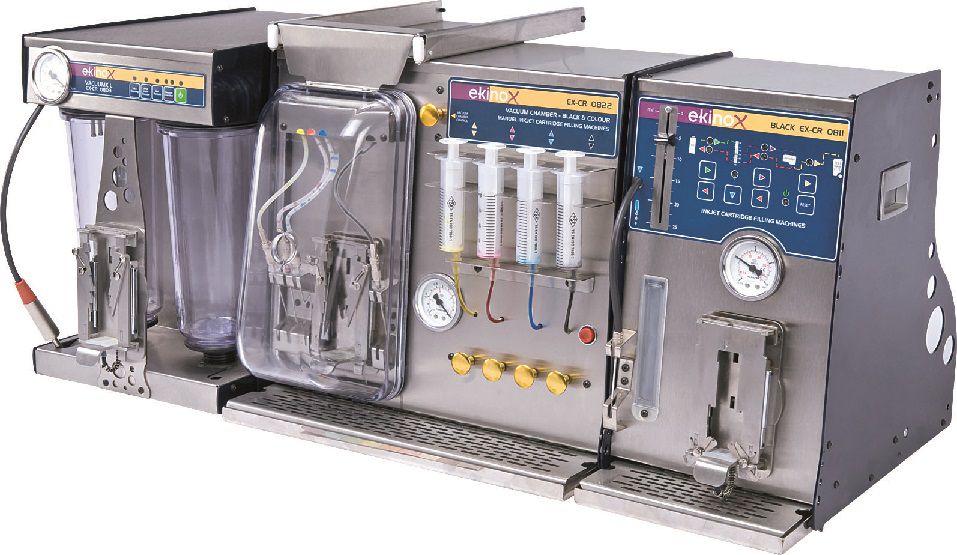

| EX - CR3 M Technical Faetures |
0803

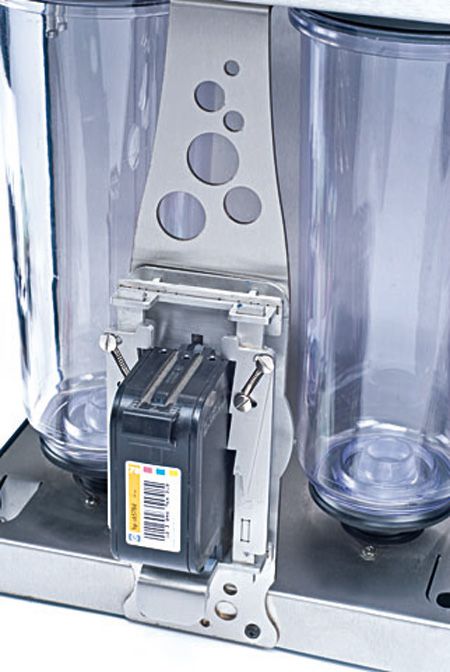

| - Many cartridge models can be vacuumed powerful from nozzle with functional chromium cartridge apparatus.
- Single color can be vacuumed from nozzle thanks to hand vacuum.
- Different cartridges can be vacuumed with any cartridge apparatus thanks to hand vacuum.
- Instantly starts vacuuming with ready to use tube so no need to centrifuge system.
- Color cartridges can be balanced with vacuum.
- Waste ink can be seen in side the vacuum tube.
- Warning signal when vacuum tube filled with waste ink.
- Vacuum of cartridge can be followed with vacuum gauge.
- Easy to use and clear keypad.
- Vacuum tube can be installed and uninstall easily.
|
0822 |
|

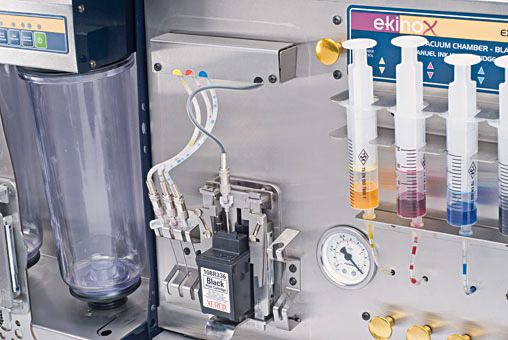

- Cartridges don’t mix colors while filling in vacuum chamber, thanks to chromium apparatus which is suitable many cartridges.
- All black and color cartridges with felt can be filled with vacuum chamber.
- Ink volumes can be adjusted by seeing.
- Vacuum level adjusted automatically and seen with vacuum gauge.
- Useful and strong ink valves.
- Quick changed ink syringes.
- Practically used vacuum cover.
|
| 0811 |
|

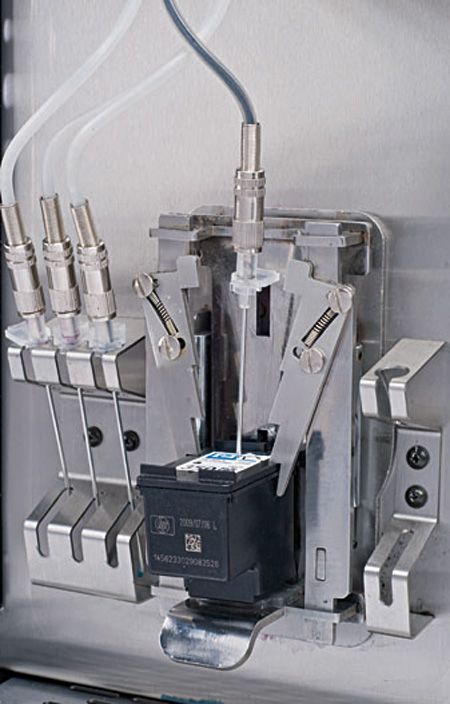

- Many black cartridge models can be filled from nozzle thanks to special and functional chromium apparatus. Clogged cartridges can be seen thanks to pressure gauge.
- Cartridges that filled with chromium apparatus can be filled perfectly thanks to volume adjustment bar which is first on the world.
- For clogged cartridges speed reduced and filling repeated thanks to automatic speed controlled pumps while filling with chromium apparatus.
- Ink in the cartridge can be emptied to waste or clean ink tank.

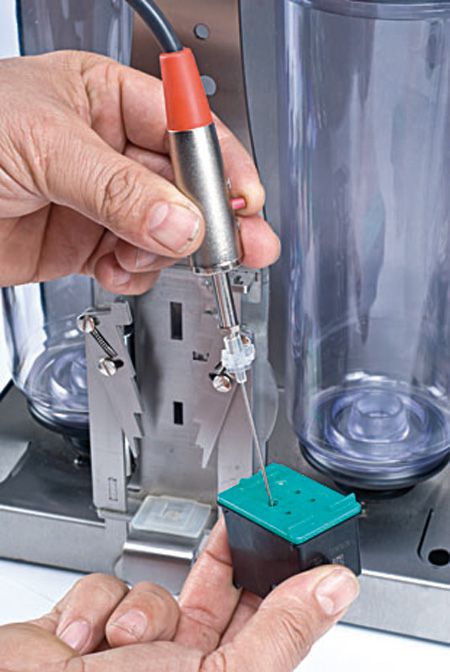

- Black cartridges with felt, which are can not be filled with apparatus, are can be filled with special sensitive needle.
- With keypad counter can be followed or device can be adjusted.
- Easy to use with colorful buttons and path on the panel.
- Warning signal when ink finished in the tank.
- Warning message for clogged cartridges filled from nozzle
|
|
| GENERAL FEATURES | - Chromium body, follow operation with sound (buzzer), design for no need to extra device, low energy consumption.
- Ink tanks can be enlarged and changed easily.
- Design for easy to maintenance.
- Power Supply : 220V 50Hz, (110V or 12V optional)
- Dimensions : 85X40X39(H)
- Weight : 35 Kg +/- %6
|
